1. Is CS210 OPC server is a UA or DA server?
Ans- DA server.
2. What is the Program ID/ Server ID?
Ans- CS200OPCServer
3. What is the Host ID?
Ans- This should be your PC name in which the CS software is installed. To find this; enter into command prompt & type ipconfig/allThe Host Name should be your HostID.

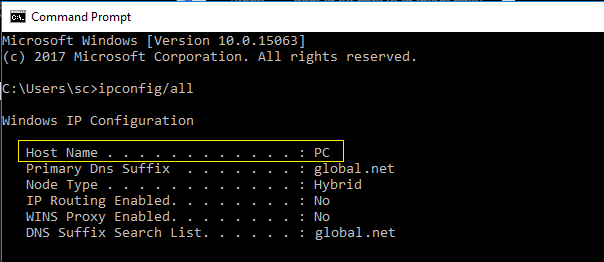

See attachment "Host ID"
4. What is the Class ID?
Ans- This is how you can find the Class ID:
On your desktop click on Start -> Run -> type "regedit". Hit Enter.
You will find several entries in this registry.
Look into My Computer\HKEY_CLASSES_ROOT\CS200OPCServer
Here you will see a subdirectory named CLSID showing the Class ID.

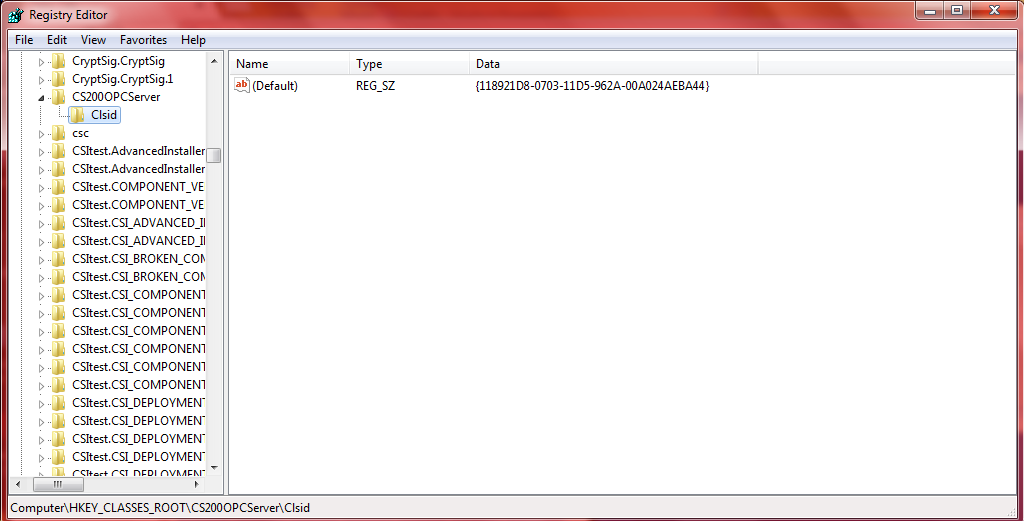

See attachment "Regedit_Class ID"
Also, if you have the softing OPC toolbox demo client installed, this ID will appear there as well.

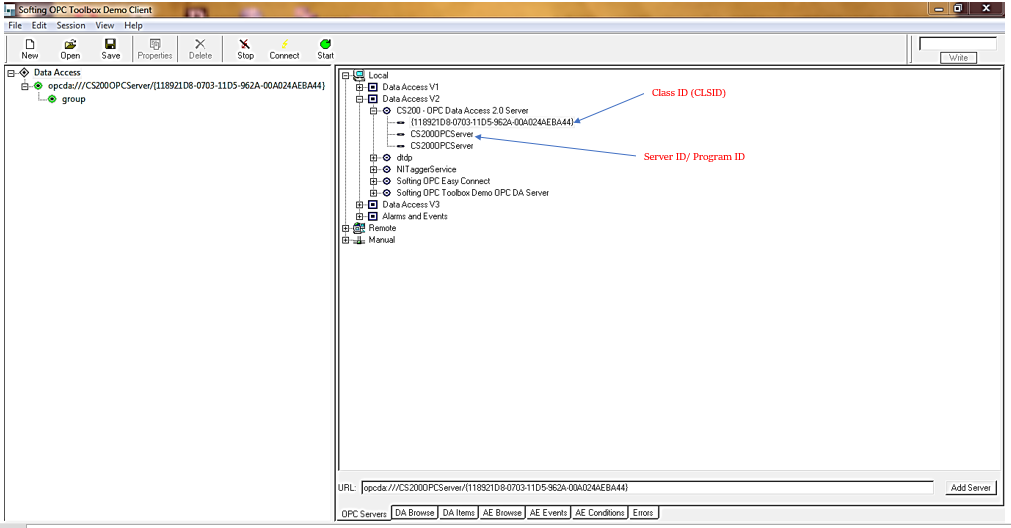

See attachment "Server ID & Class ID_viewed via Softing OPC Toolbox Demo Client"
5. Note!
The CS OPC server supports Data Access in version 2.0 only!
Scroll to the bottom of the page to see all attachments.
